Marine hydraulic steering gear
Product Features:
Manual Hydraulic Steering Gear The manual Hydraulic Steering Gear is only equipped with the maneuvering wheel operation. Simple configuration, low noise, little volume, convenient installation, flexible and steady, safe and reliable operation with self_locking function and it can keep the rudder angle stable during the operation. improved Hydraulic Steering Gear System 24V electric operation, maneuvering wheel operation, and emergency maneuvering wheel operation.- Equipped with power loss, lack phase, overloading, low oil level and filter choke light, and audible alarm.. Simple configuration, little fault sources, low noise, easy installation. flexible and steady, safe and reliable operation with multi self-lockingfunction and it can keep the rudder …
Suitable for those small boats and ships with nominal torque less than 16KN.m, such as small…
Ask For A Quick Quote
We will contact you within 24 working hours, please pay attention to the email with the suffix “@penlucky.com”.
COME VISIT US AT OUR HQ.
Our headquarters are based in China’s Shandong District.
Details

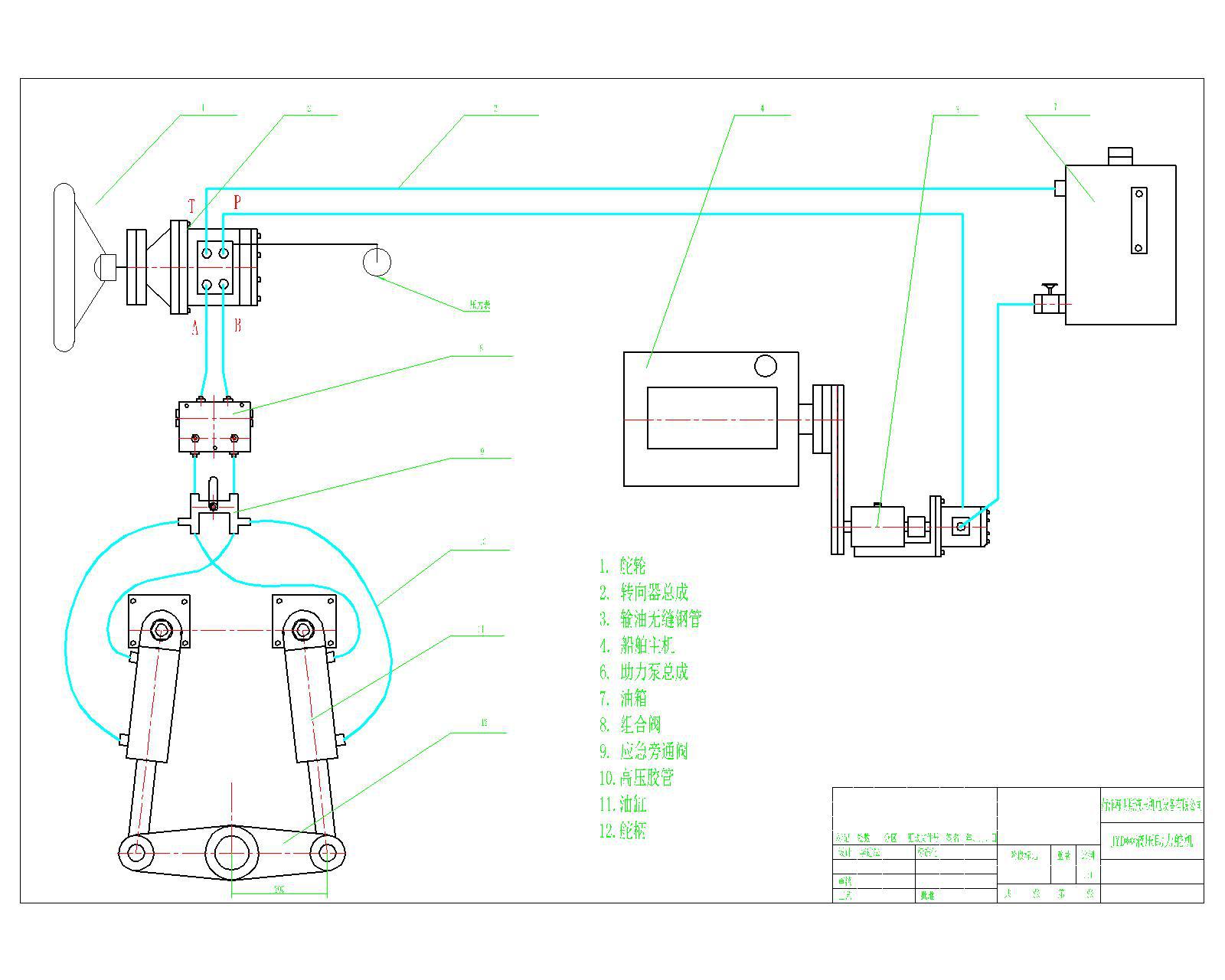

1. The Improved Hydraulic Steering Gear features 24V electric, maneuvering wheel, and emergency operations, equipped with alarms for power loss, phase lack, overload, low oil level, and filter choke. It boasts a simple configuration, low noise, easy installation, flexibility, stability, and reliable operation with multiple self-locking functions. It operates effectively under various conditions, including transverse incline up to 15 degrees, lateral sway up to 22.5 degrees, fore-and-aft incline up to 5 degrees, and fore-and-aft sway up to 7.5 degrees. This steering gear complies with major classification societies’ regulations and is suitable for river and ocean vessels with torque ranging from 5kN.m to 500kN.m. 2. Technical Specification: 3. Hydraulic System Principle Diagram: 4. Rudder Propelling Setup Configuration and Installation Dimension: improved Hydraulic Steering Gear udder propelling setup has double cylinder single rudder and double cylinder double rudder, We will choose the suitable style for each ship as per requirements from clients. Notes: 2) The connecting rod used in the system shall be provided by clients: 3) lf the ordered steering gear system requires the rudder turning time to be s12s or s28s, and the maximum rudder angle to be +45 degree, the clients must indicate those technical parameters in the order contract: 4) We reserve the right to revise or improve some parameters listed in this brochure without further noticePROJECT UNIT JYD-03 JYD-05 JYD-08 Nominal steering torque KNm 3.0 5.0 8.0 Number of rudders 2 Barbarian time S ≤15 Maximum rudder angle ° 35 Limit angle ° 36.5 Maximum working pressure MPa 5.0 6.0 The safety valve regulates the pressure MPa 6.5 7.5 Cylinder model CBF-310 CBE-316 Cylinder pressure MPa 16 tiller diameter mm 200 210 230 Piston diameter mm 50 63 80 Piston stroke mm 240 260 280 Applicable rudder stock diameter mm ≤90
1) Clients shall indicate the numbers of rudder and the diameter of rudder stock during ordering:
